| Weight | 7.5 kg |
|---|---|
| Rate Power | 11KW, 22Kw, 7kw |
| Color | Black |

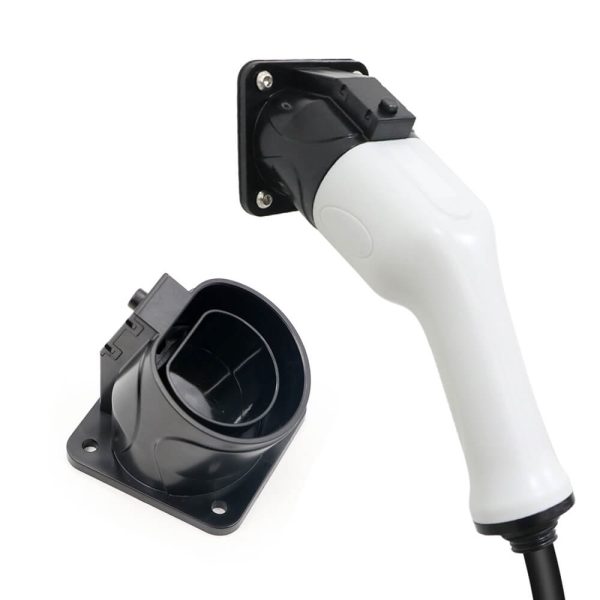

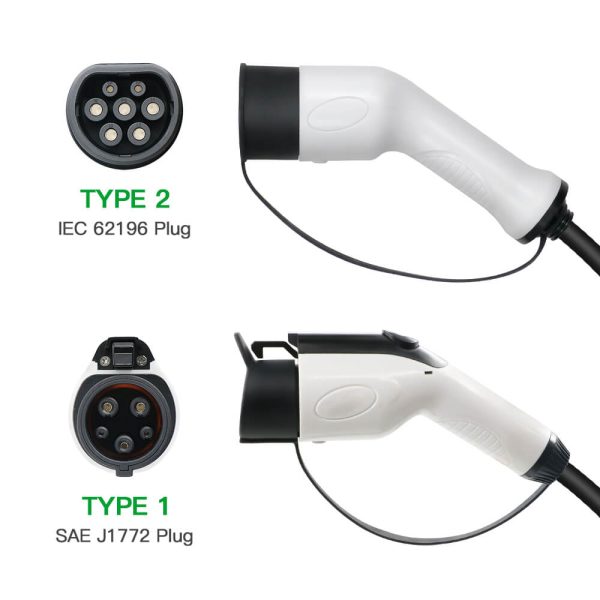

| Plug Type | TYPE2 |
| Charging Type | EV CHARGER STATION |
| Standard | IEC 61851 |
| Rate Voltage | 380-450v |
| Rated Current | 32A 3P |

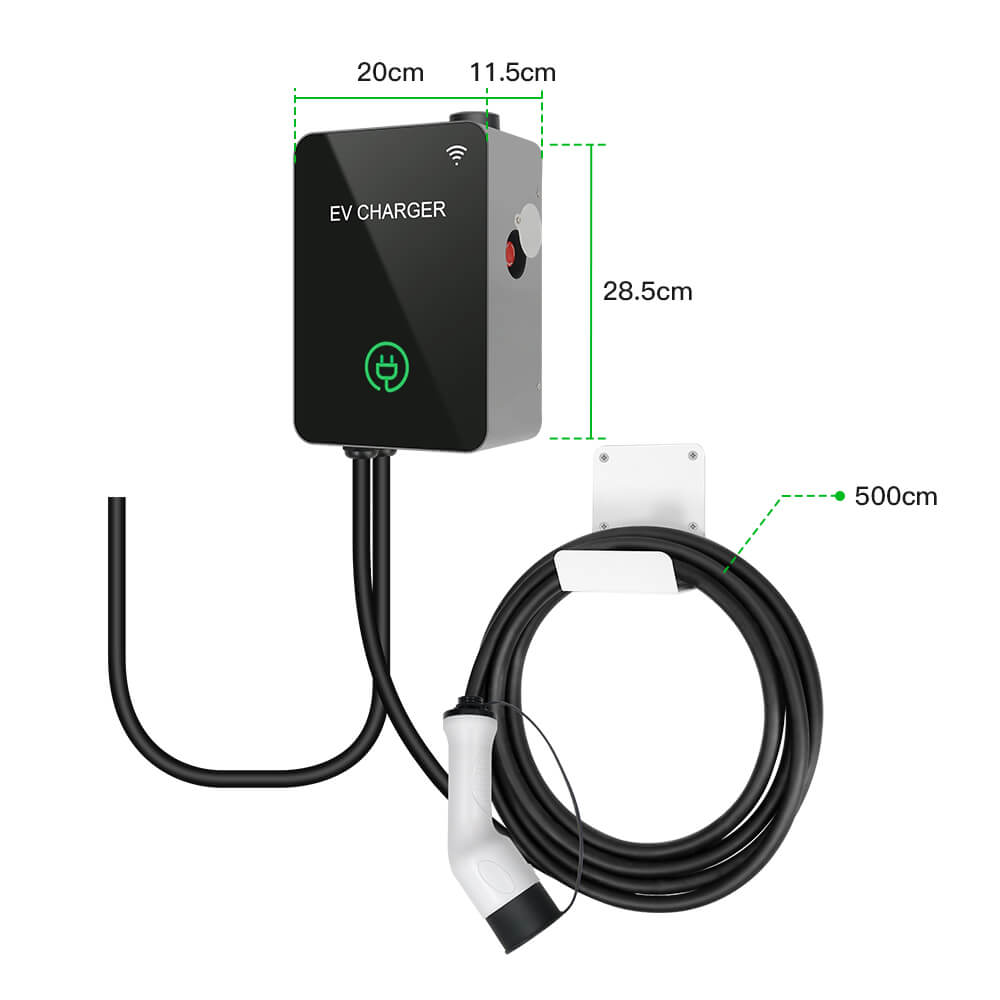

| Cable length | 5 meters / Customized |
| Warranty | 12 Months |
| Working Temperature | –30℃ ~ 55℃ |
| Flame retardant grade | UL94-V0 |
| Mechanical Life(Normal use) | >10000 times |

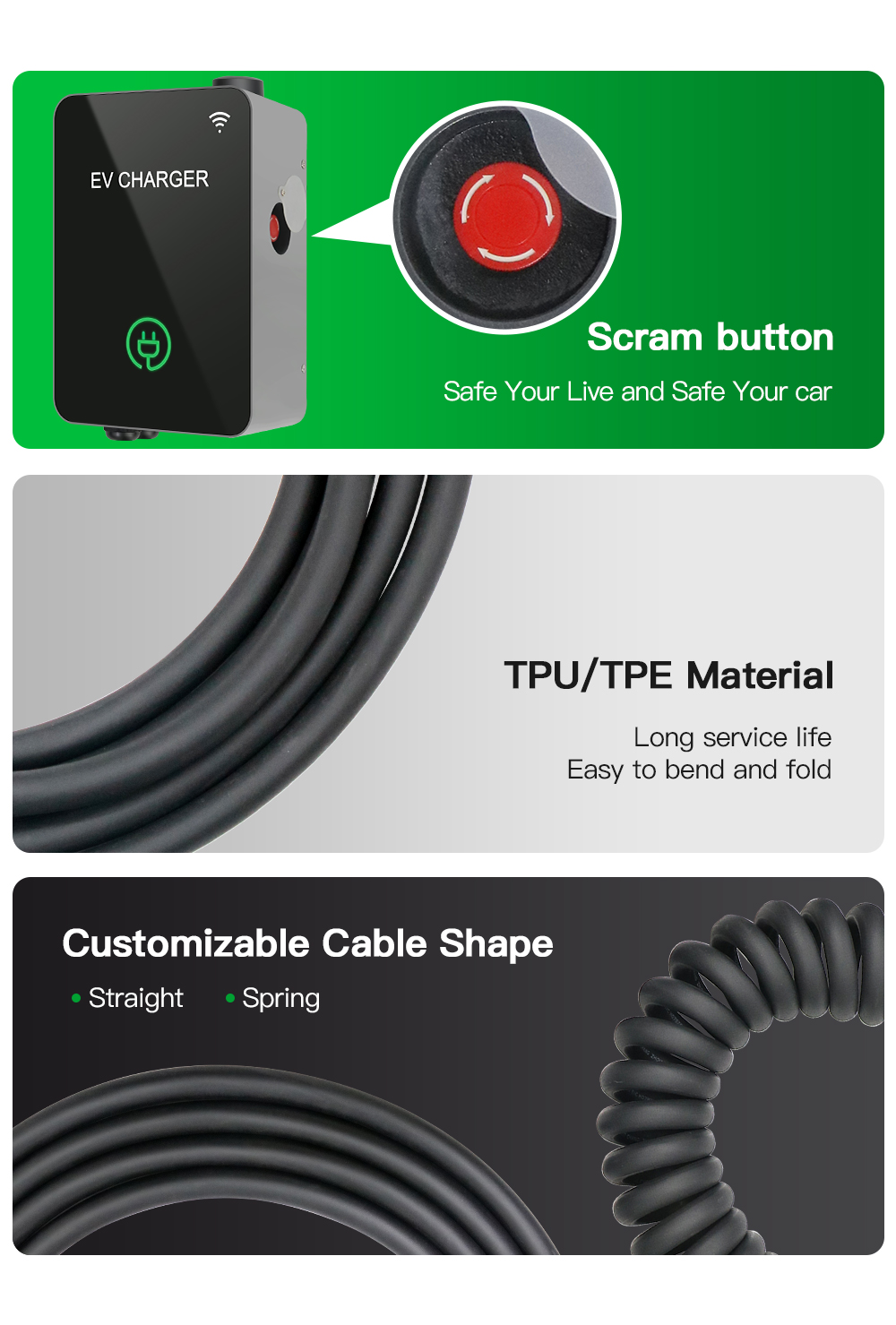

| Cable | Inner copper with TPE/TPU +5m |

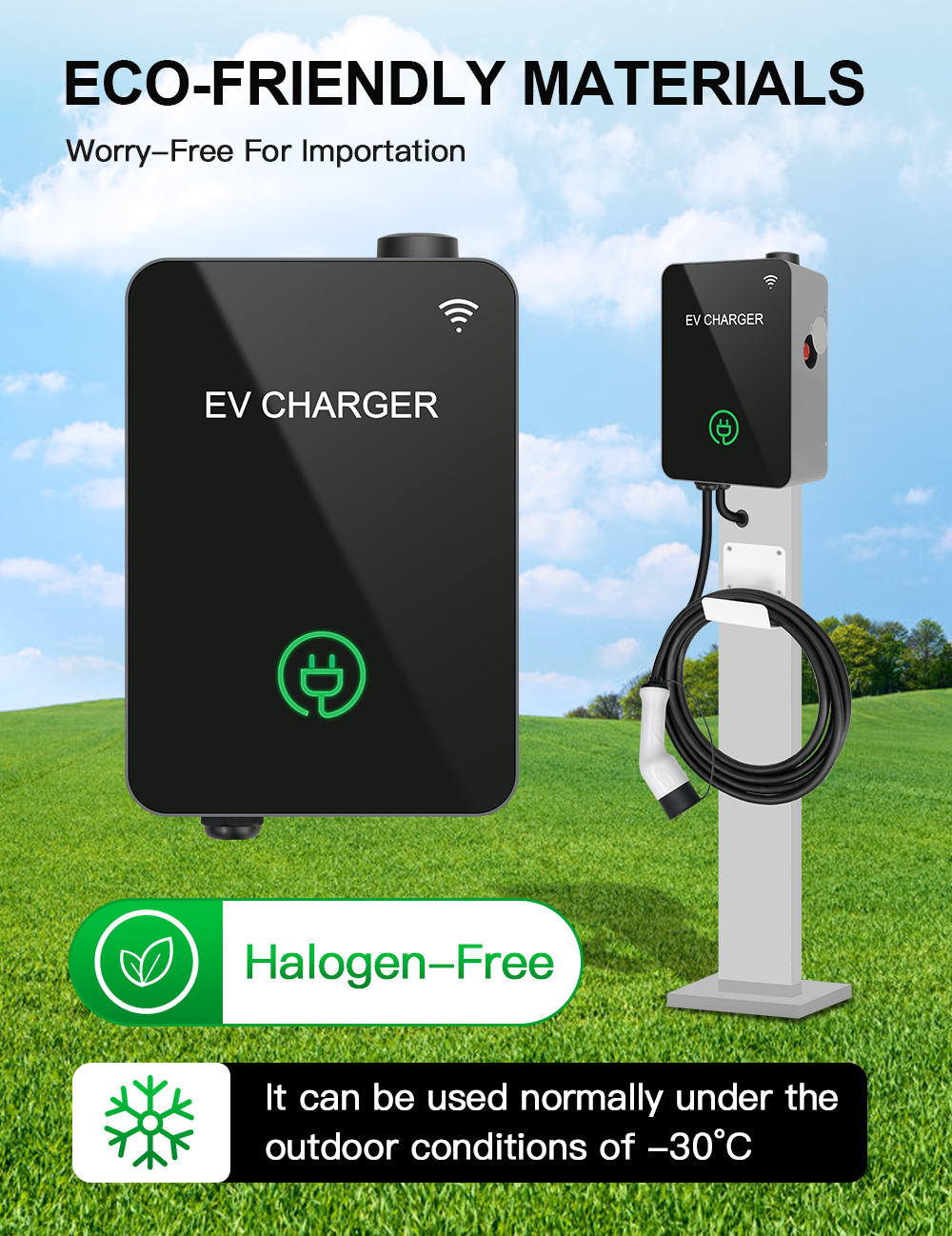

| Main Material | Thermo Plastic/ Silicon Rubber/ Copper Alloy |
| IP degree | IP65 |
| Patch life | ≥ 10000 |
| Safety Protection | 1.Over and under frequency protection |

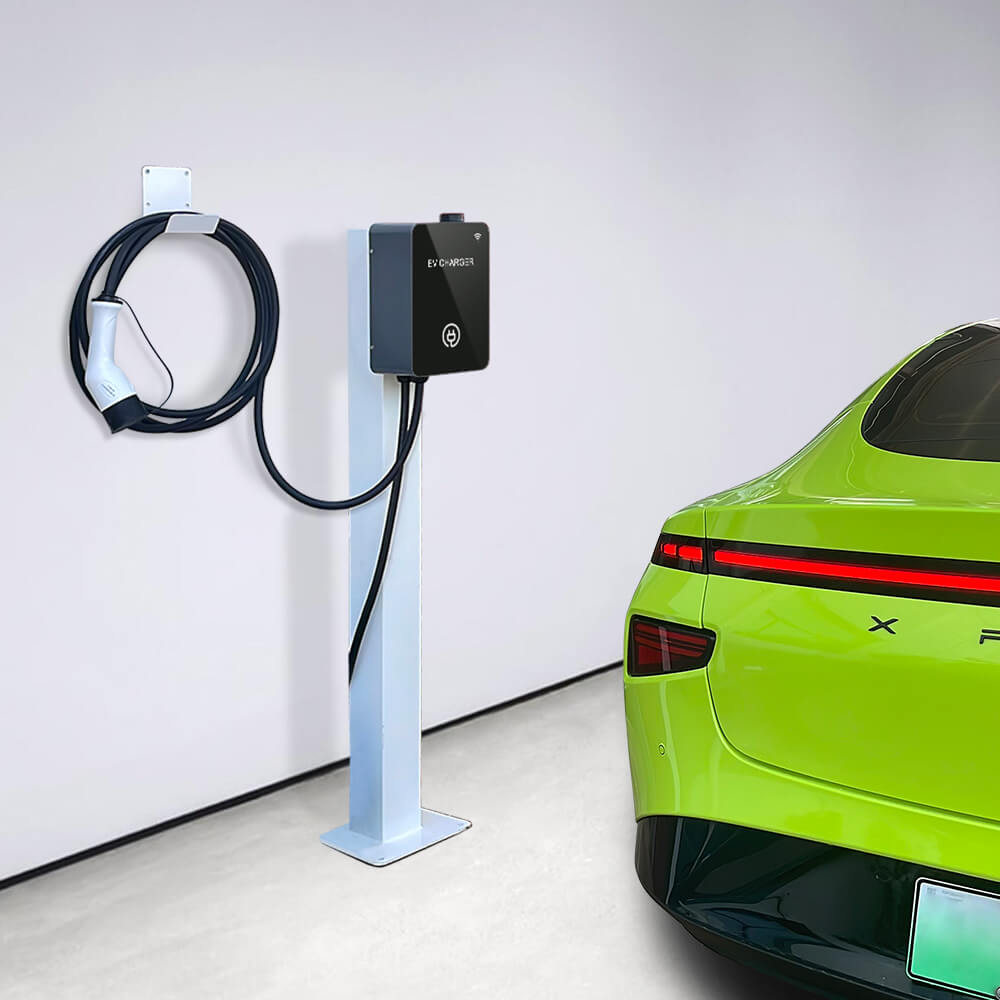

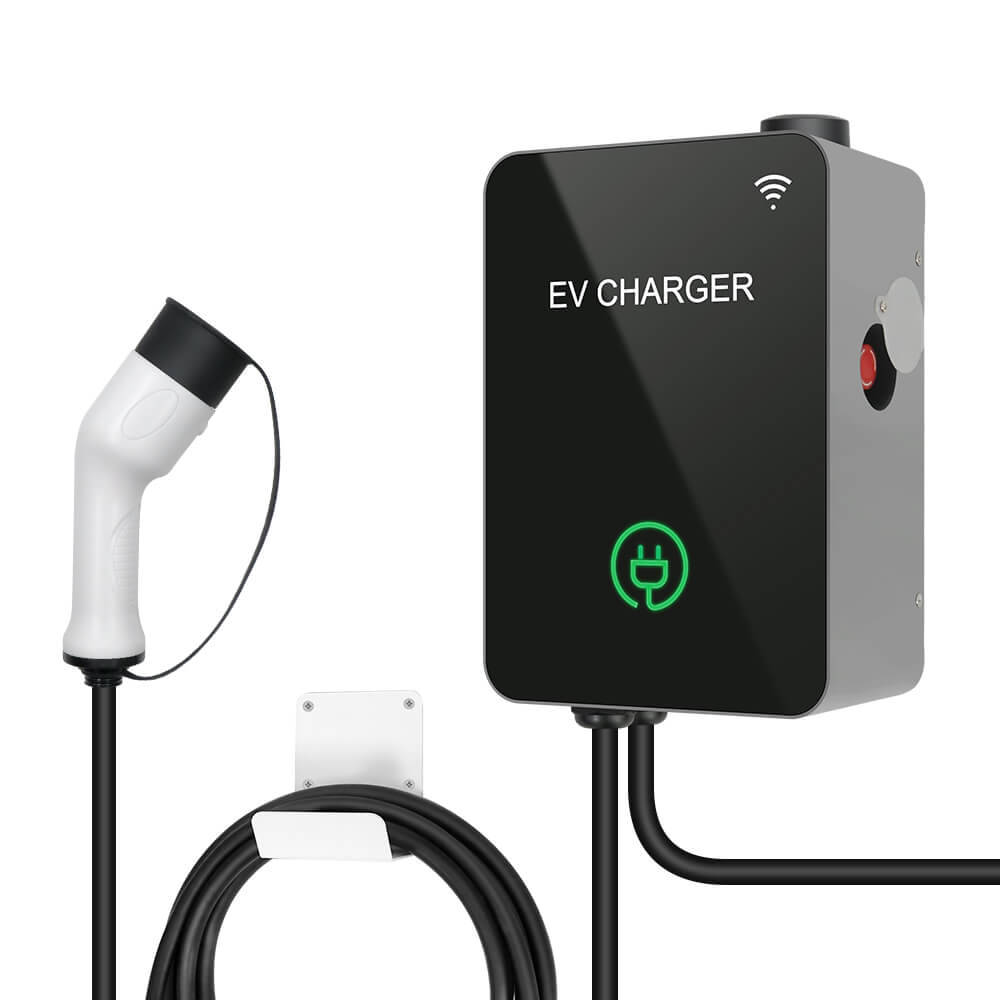

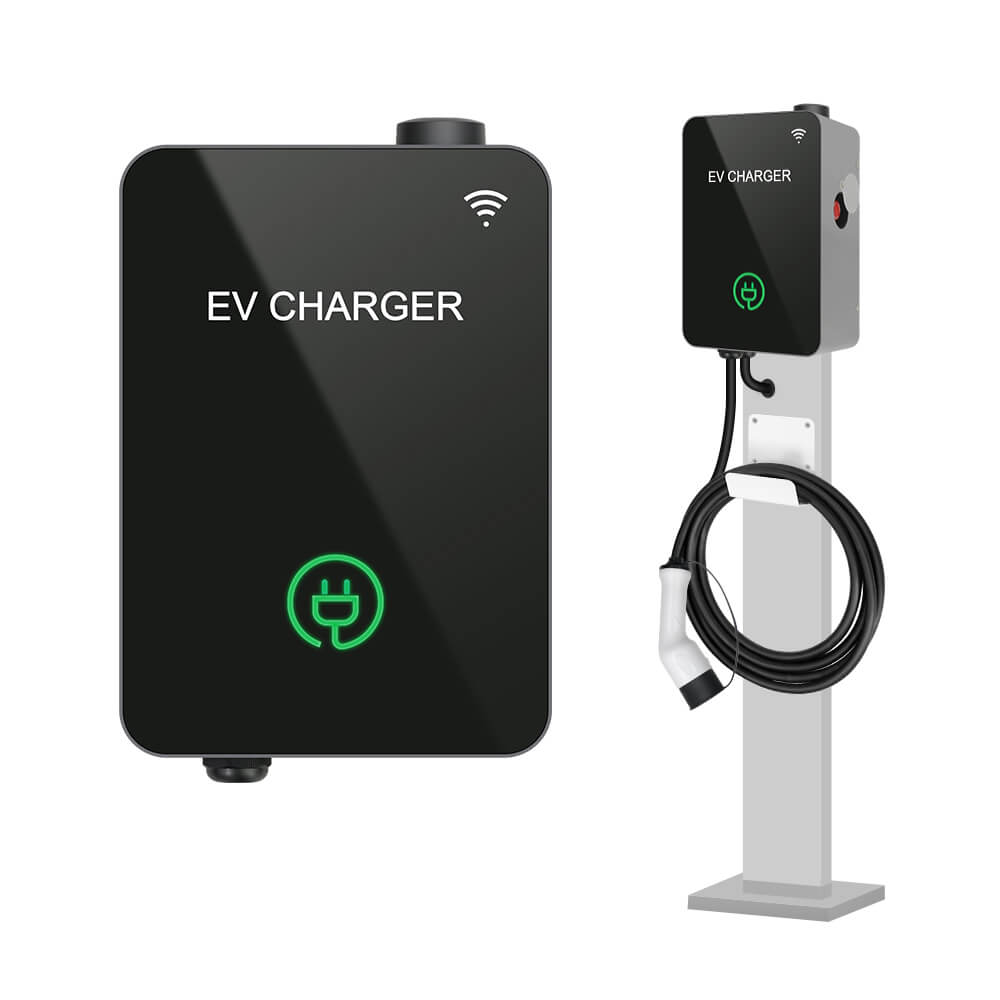

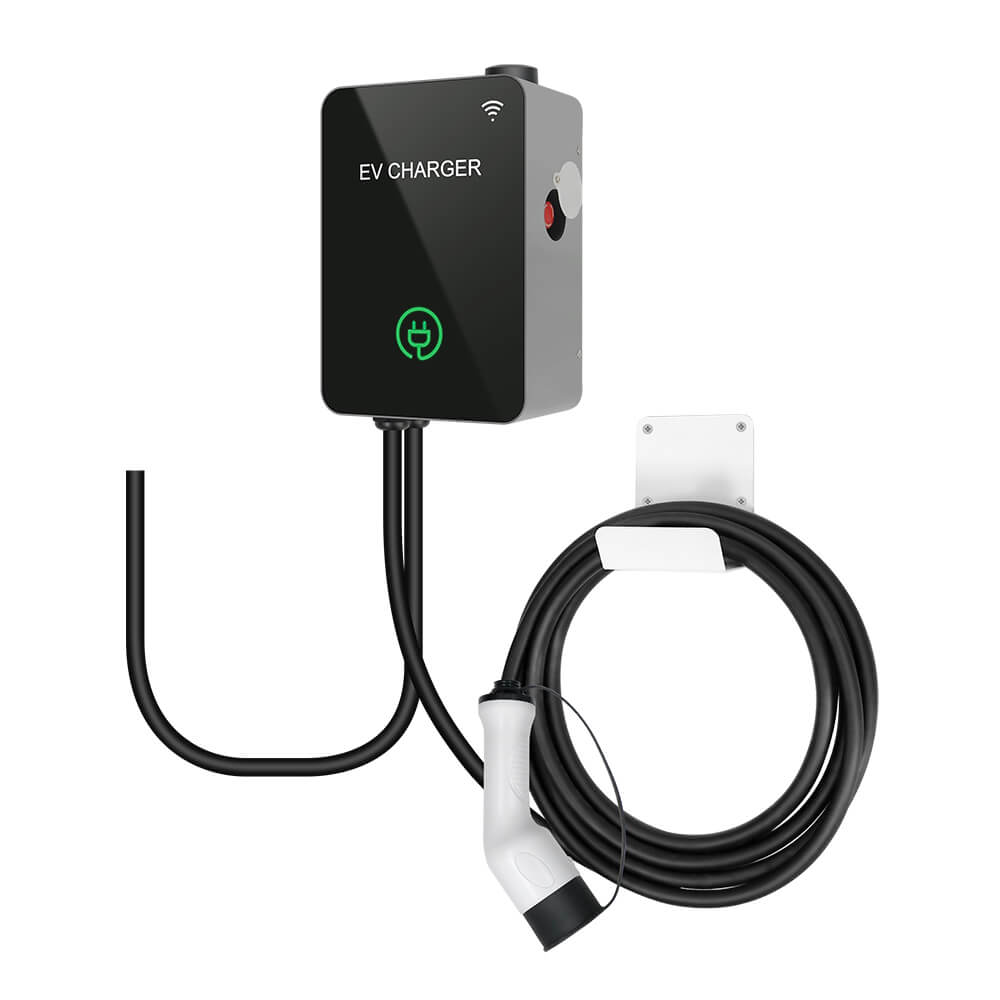

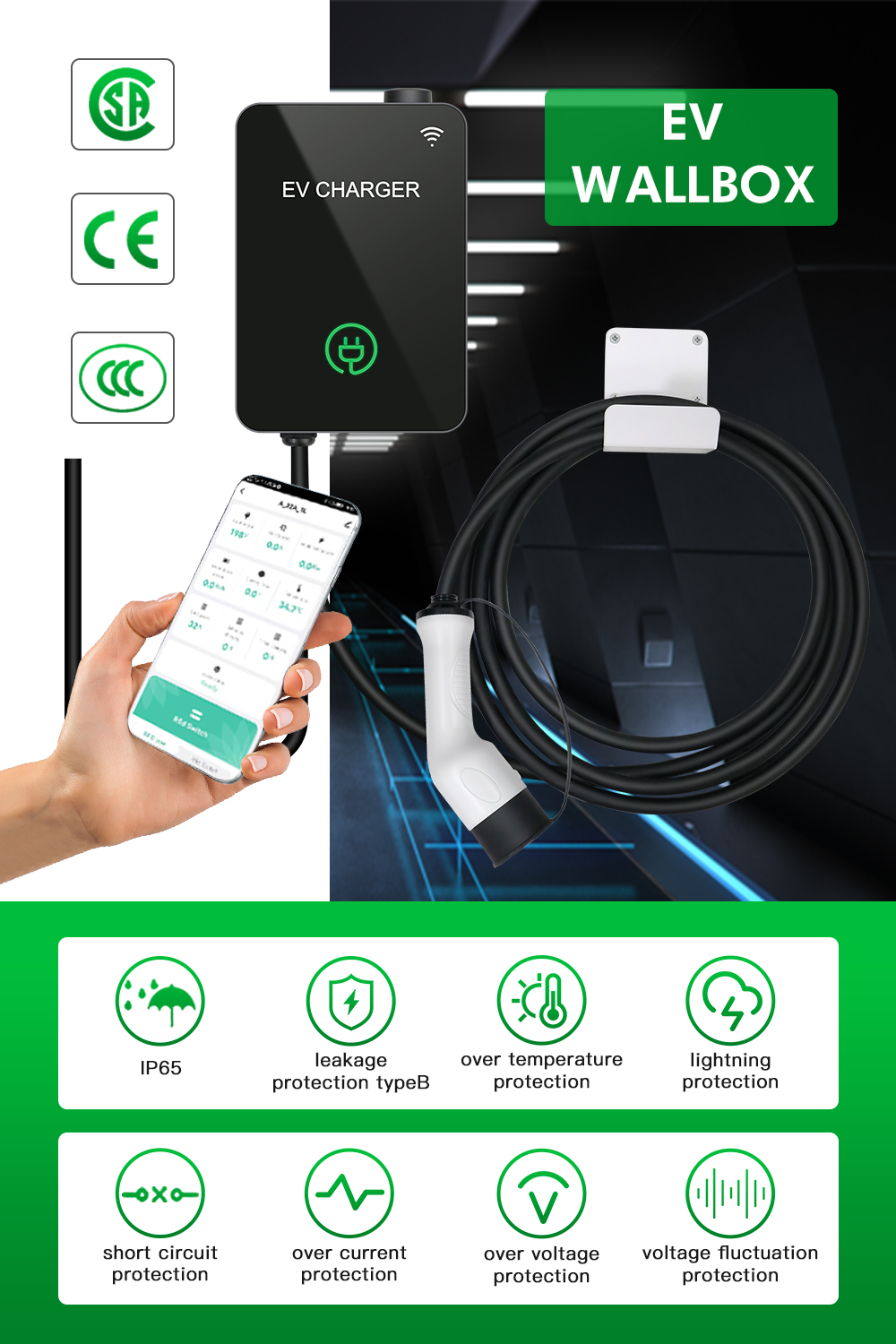

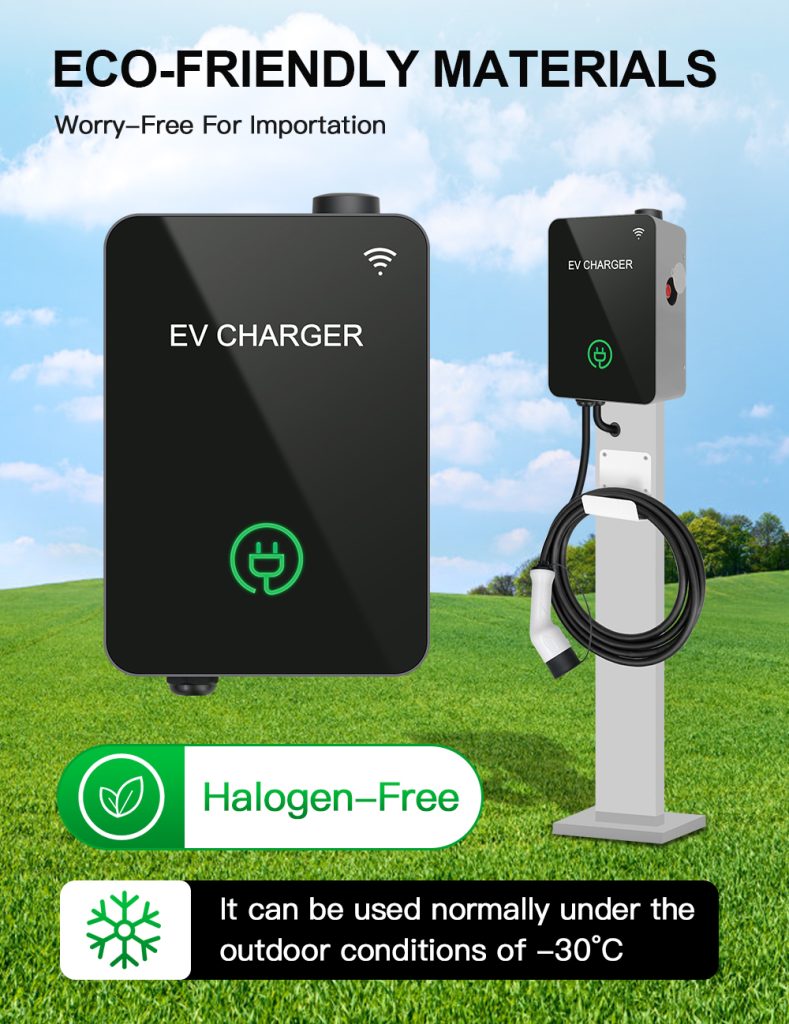

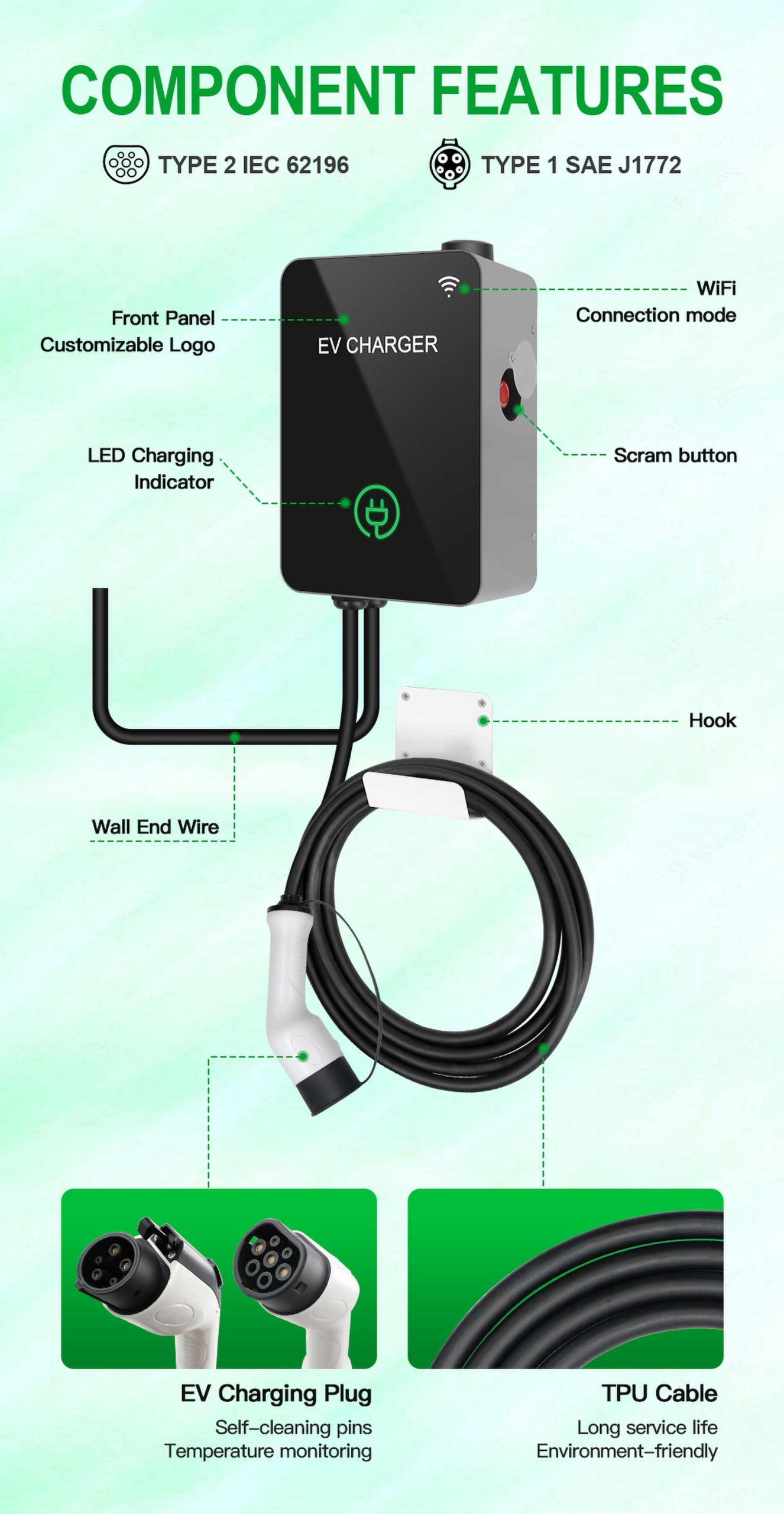

The ISIGMA EV CHARGERING STATION is an APP wall-mounted charger and suitable for home use. It is easy to install, stable in performance, IP65 waterpoof designed and has a complete protection mechanism. The LCD display can show the detailed charging status.Support RIFD function, it has a card writer and management program. The charger can be used with stand.
Equipped with TypeA+6mA leakage protector, Automatic temperature monitoring Smart chip to auto-repair faults, Easy to install, Can be used with stand
Charging parameters could be set and showed through the APP on the smart phone
