| Weight | 4 kg |
|---|---|
| Rate Power | 16A 1P 3.6kw 5m, 16A 3P 11kw 5m, 32A 1P 7.2KW 5m, 32A 3P 22kw 5m |
| Color | Black Plug and Black Wire |
| Plug Type | IEC 62196-2 TO IEC 62196-2 |
| Charging Type | Model 3 |
| Charging plug | IEC 62196-2 TO IEC 62196-2 |
| Rated Current | 16A 3P ,32A 1P,16A 1P,32A 3P |
| Capacity | 11 KW,7.2KW,3.6KW,22KW |
| Cable length | 5 meters |
| Warranty | 12 Months |
| Working Temper+21:26ature | –30℃ ~ 55℃ |
| Protection Degree | IP55 |
| Mating andUN-mating Force | 45<F<80N |
| Mechanical Life(Normal use) | >10000 times |

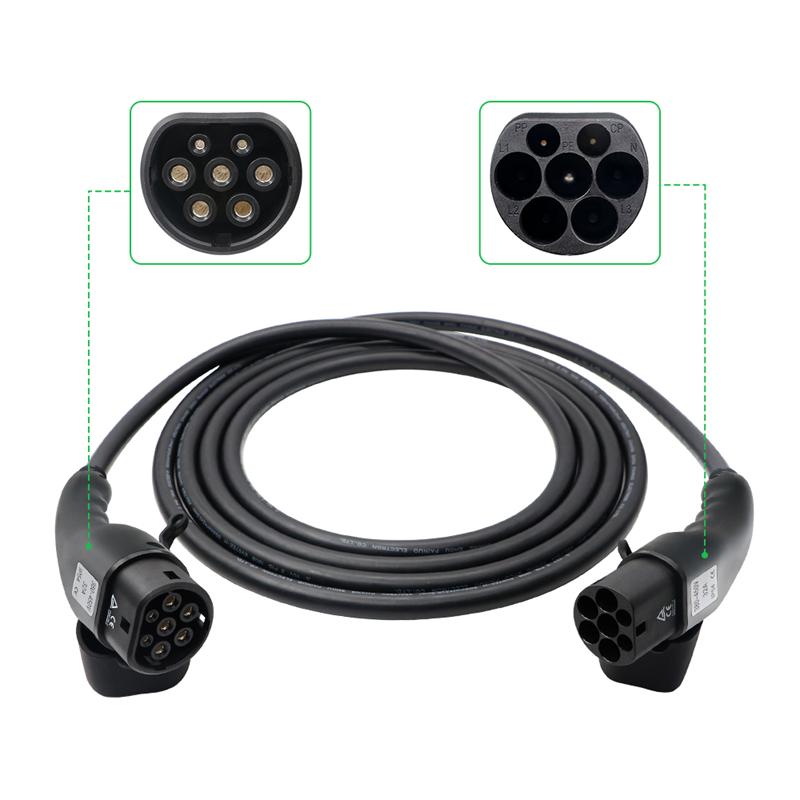

ISIGMA EV CHARGER CABLE is designed for charging in mode 3, echarging from all private and public AC stations. Both connectors have an ergonomic shape and the mounting part is made of soft plastic, which ensures easy and comfortable handling and connection. When the cable is connected, it is protected against the ingress of particles and water. Protective caps have a degree of protection IP54 and allow protection against ingress of dust.
Advantage
TPU CABLE
Stronger and anti-aging
Meet the newest EN standard
More environmentally friendly, halogen-free
More resistant to cold and keep flexible at -40℃
More resistant to bending and longer service life

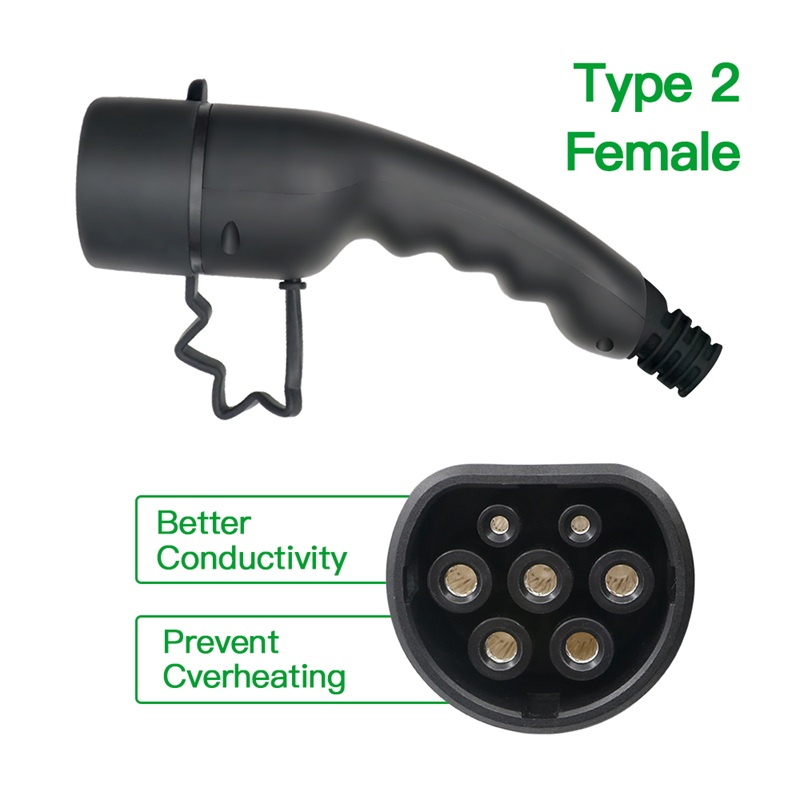

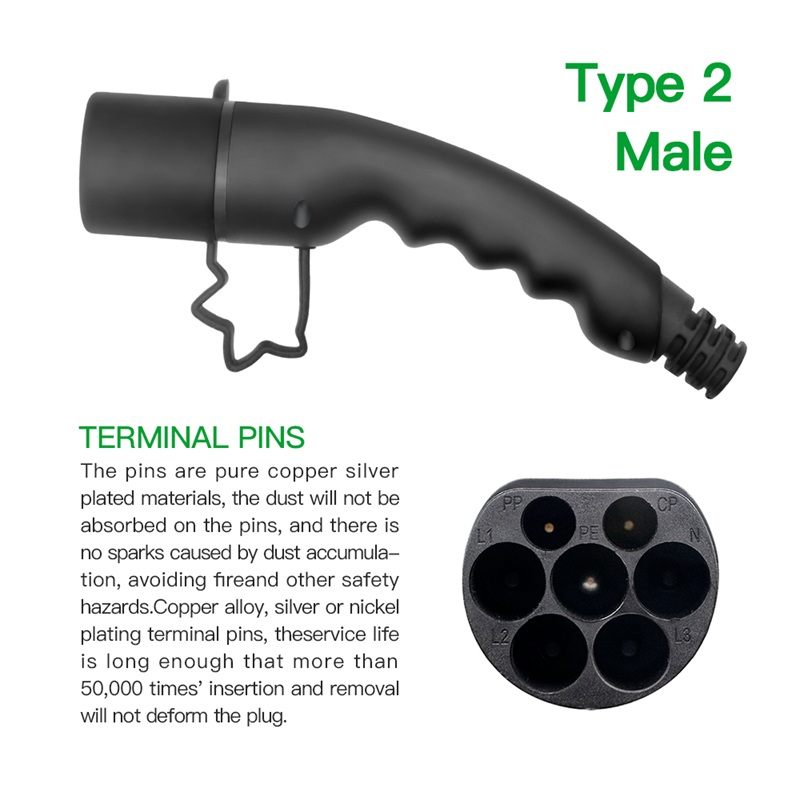

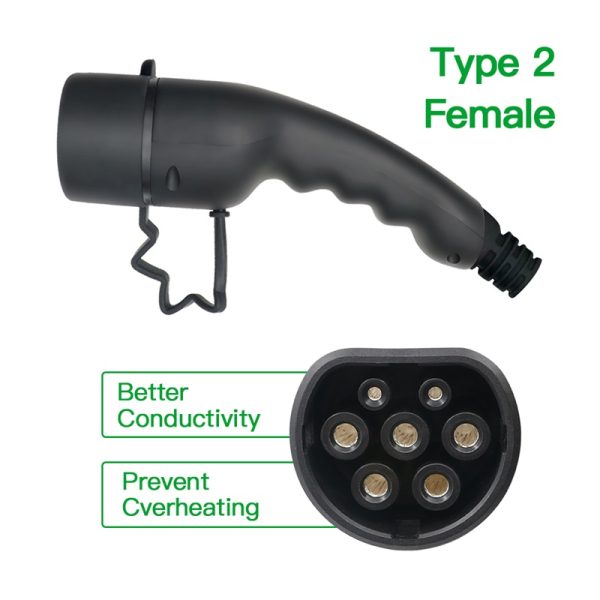

EV PLUG
Unique integrated design, stronger
Temperature monitoring on plugs (patented)
Better conductivity and higher energy transmission
efficiency
