| Weight | 7.5 kg |
|---|---|
| Rate Power | 11KW |
| Color | Black, Green, Orange |

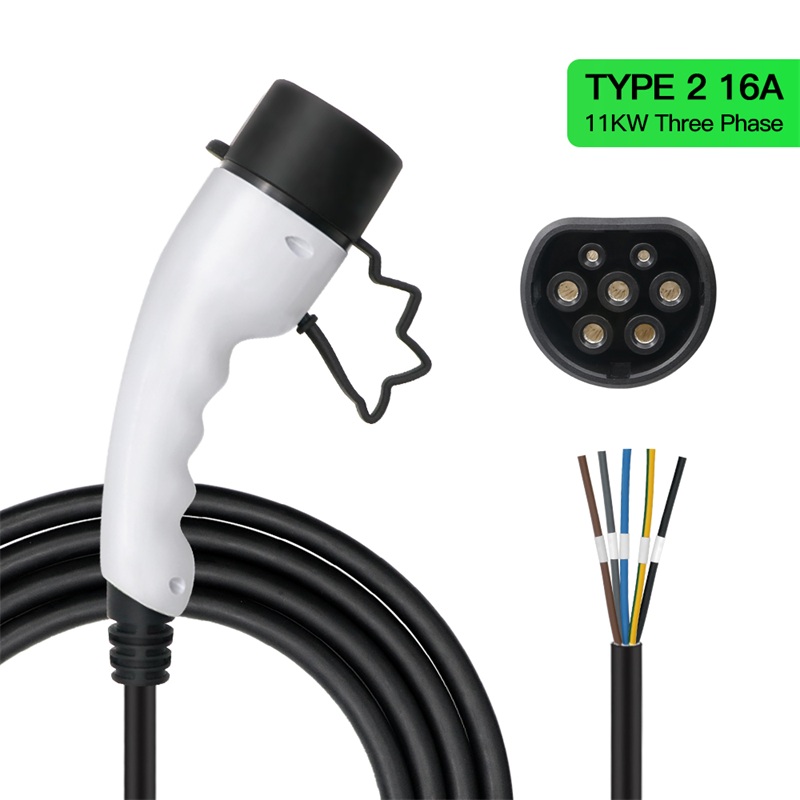

| Plug Type | TYPE2 |
| Charging Type | EV CHARGER STATION |
| Standard | IEC 61851 |
| Rate Voltage | 380V~450V |
| Rated Current | 16A 3P |
| Cable length | 5 meters / Customized |
| Warranty | 12 Months |
| Working Temperature | –30℃ ~ 55℃ |
| Flame retardant grade | UL94-V0 |
| Mechanical Life(Normal use) | >10000 times |
| Cable | Inner copper with TPE/TPU +5m |
| Main Material | Thermo Plastic/ Silicon Rubber/ Copper Alloy |
| IP degree | IP65 |
| Patch life | ≥ 10000 |
| Safety Protection | 1.Over and under frequency protection |

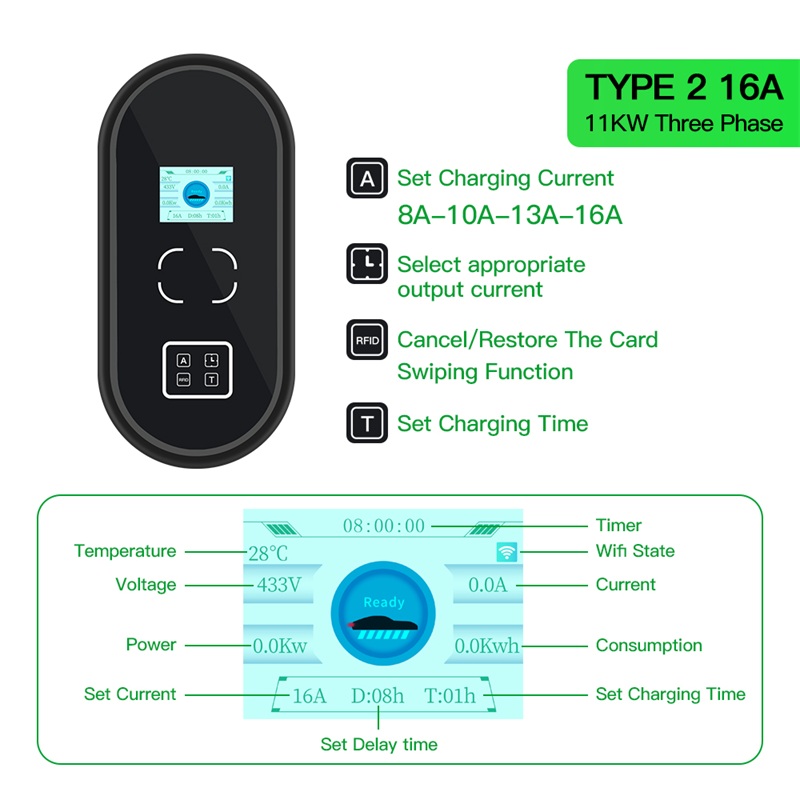

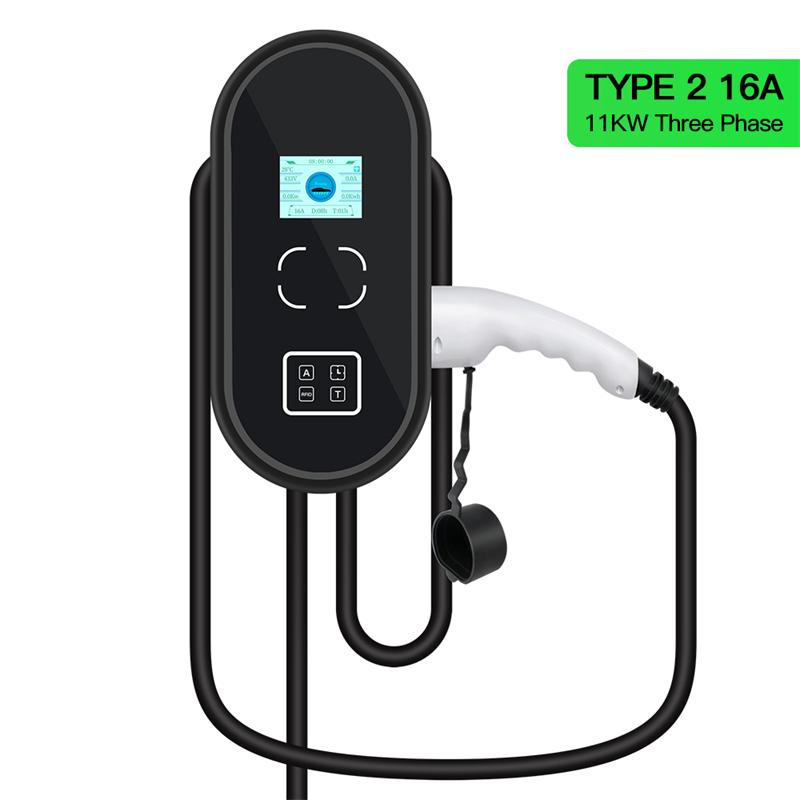

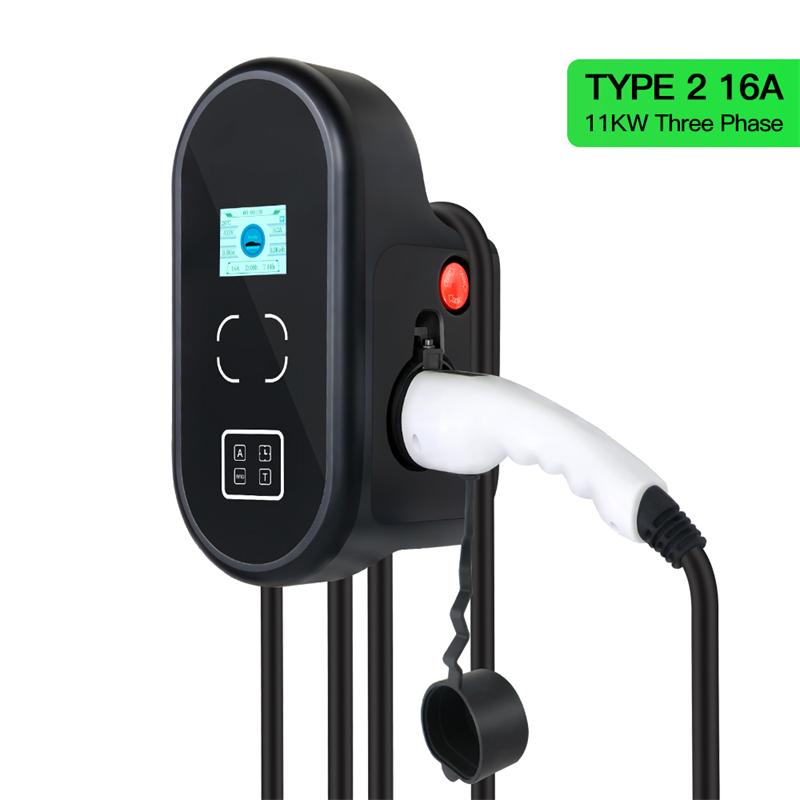

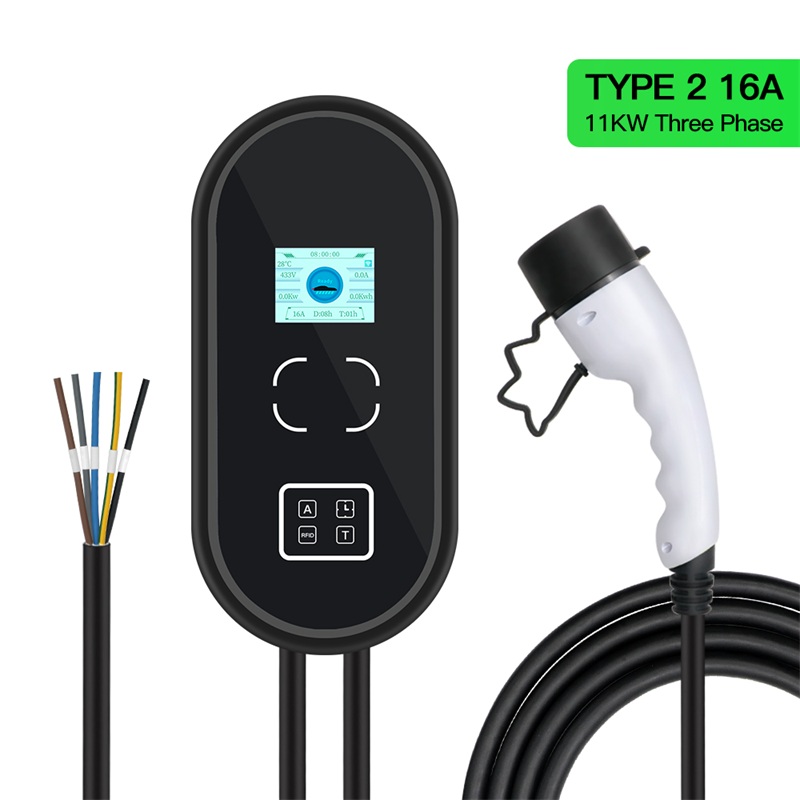

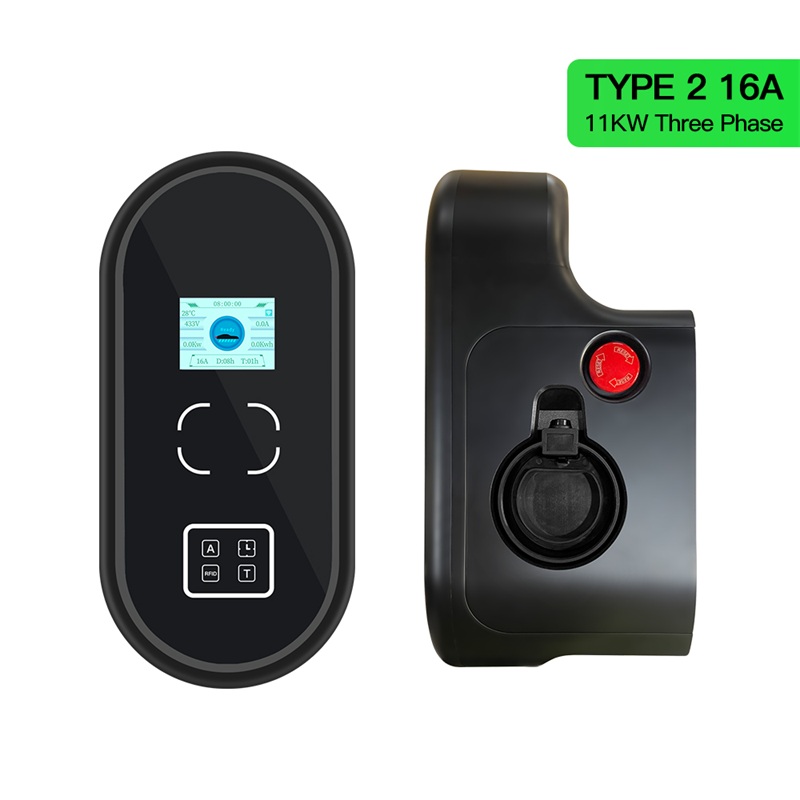

The ISIGMA EV CHARGERING STATION is an APP wall-mounted charger,RFID cards and suitable for home use. It is easy to install, stable in performance, IP65 waterpoof designed and has a complete protection mechanism. The LCD display can show the detailed charging status.Support RIFD function, it has a card writer and management program. The charger can be used with stand.
Equipped with TypeA+6mA leakage protector, Automatic temperature monitoring Smart chip to auto-repair faults, Easy to install, Can be used with stand
Charging parameters could be set and showed through the APP on the smart phone

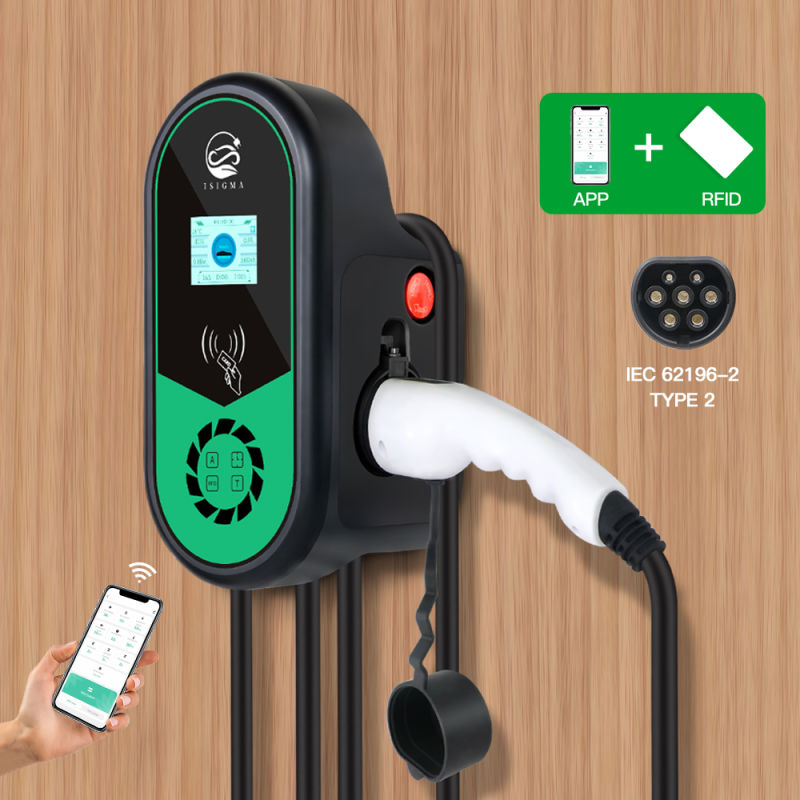

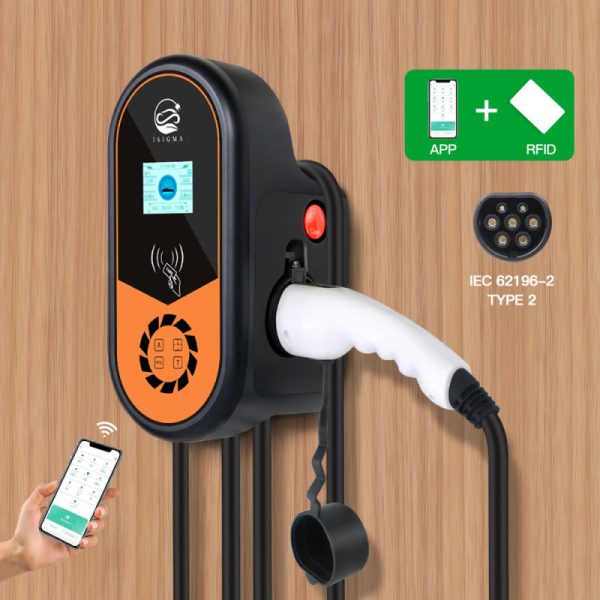

And support for RFID Card The user can control the wallbox to state and stop through the RFID card and prevent the un-authorized use of the cardless user
