| Weight | 1 kg |
|---|---|
| Rate Power | 32A 1P 7.2KW, 32A 3P 22KW |
| Color | Black |
| Plug Type | GBT20234, IEC62196 |
| Rated Current | 16A/32A,single/Three phase |
| Rated Voltag | 200V~250V,380-450V |
| Standard | GBT20234,IEC62196 |
| Inflammability Rating | UL94-V0 |
| Insulation resistance | 0.5mQ Max |
| Warranty | 12 Months |
| Working Temperature | –30℃ ~ 50℃ |
| Mechanical Life(Normal use) | > 10000 times |
| Mating andUN-mating Force | 45<F<80N |
| Connector Pin | Copper alloy, silver plating |

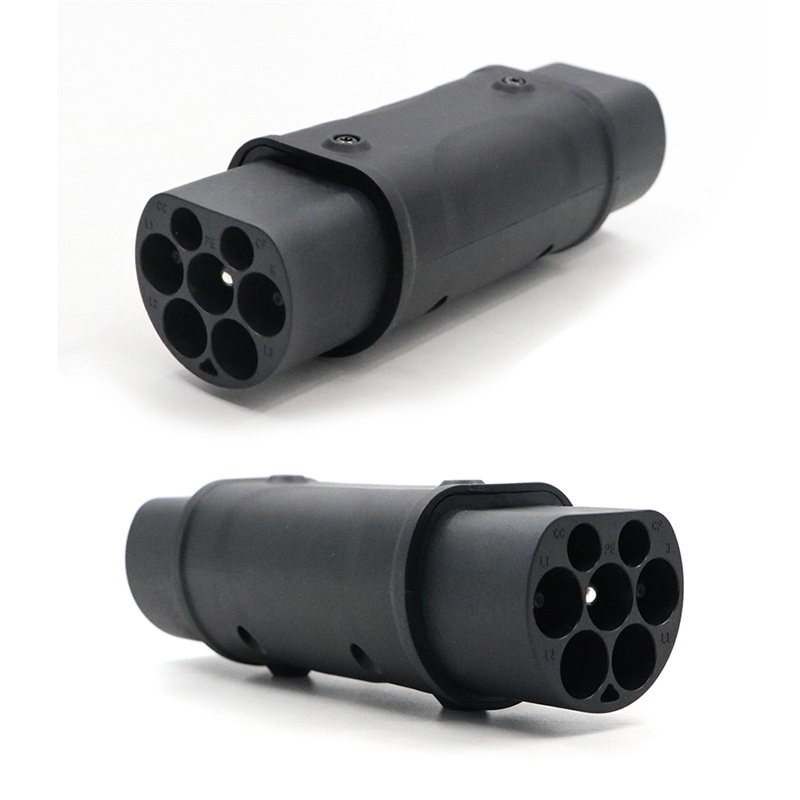

This new form, small and lightweight type 2 to GBT electric vehicle adapter , brought to you by ISIGMA, is the perfect bridge for those who are currently using a type 2 cable and are looking to convert to a GBT connection, either permanently or for shared use in a multi electric vehicle household.

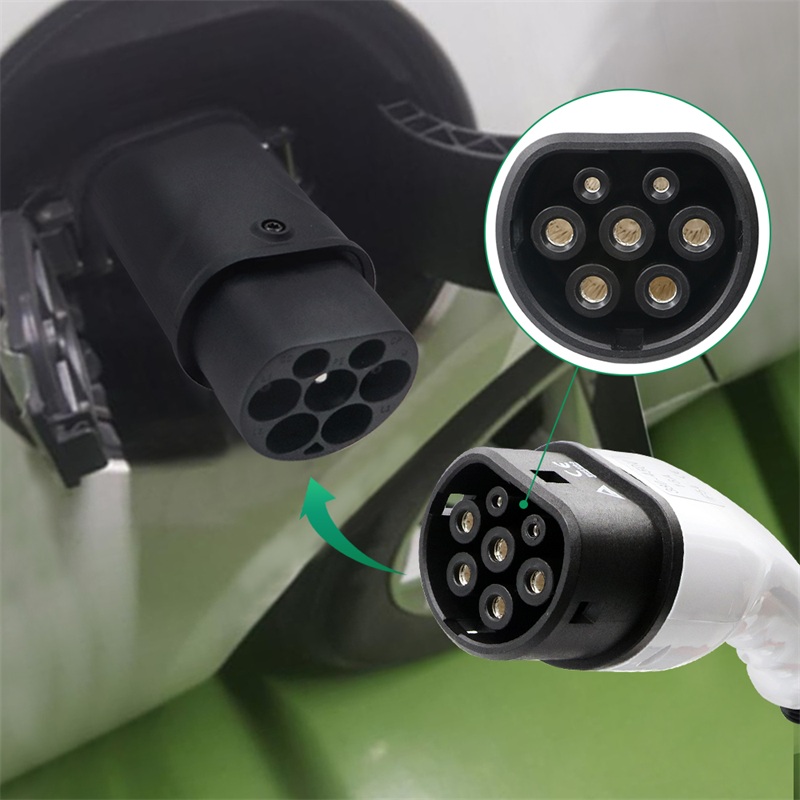

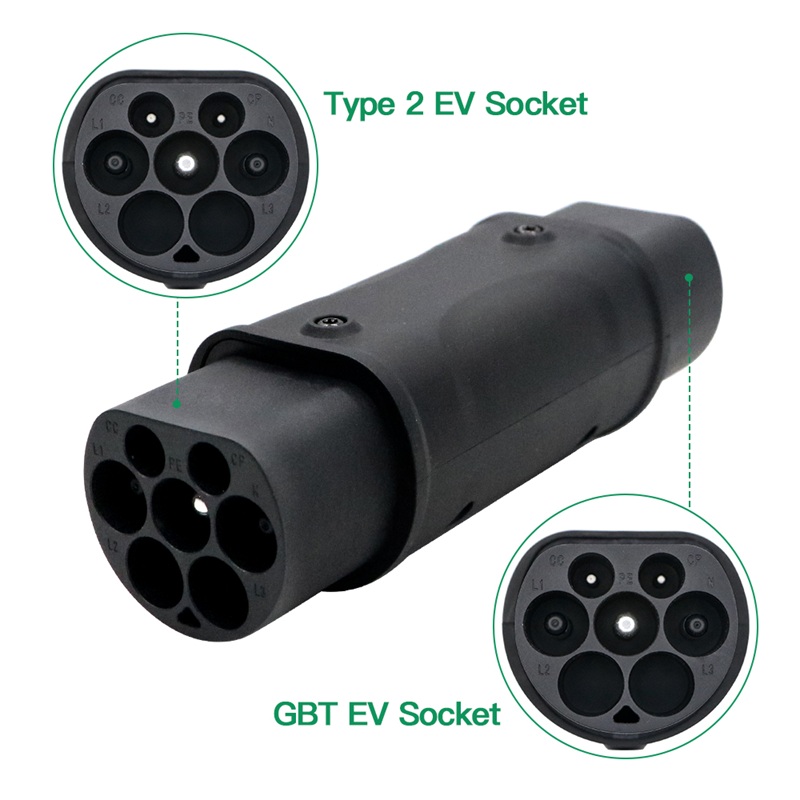

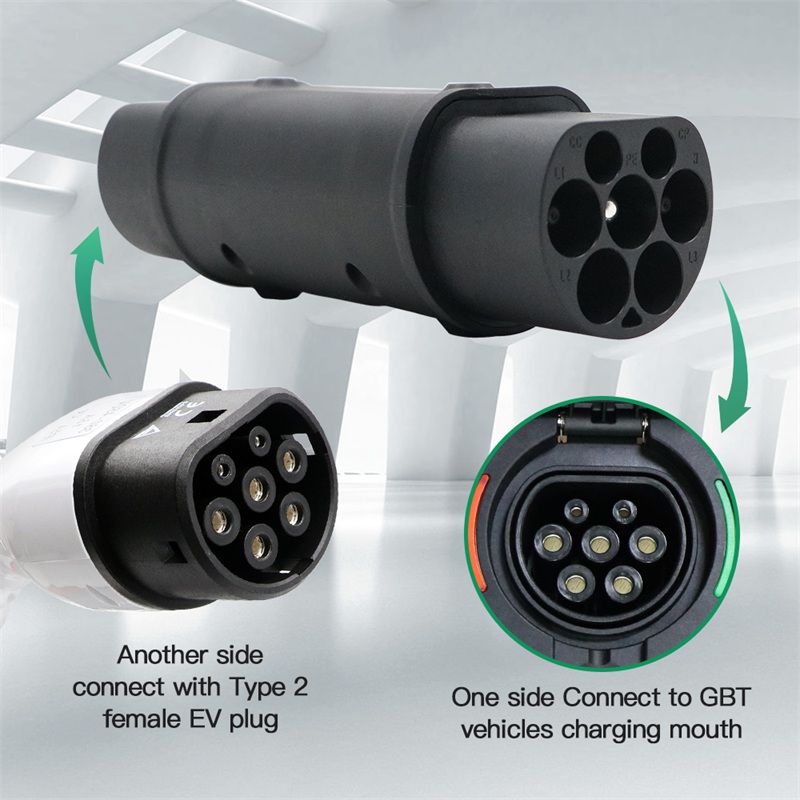

Its compact form allows for ease of use, quickly and effectively changing the car side plug from type 2 (IEC 62196) to GBT20234. Whether you’re upgrading or expecting an additional electric vehicle in your family, or at your residence, this EV TYPE2 adapter plug is a convenient and affordable alternative to an additional cable purchase.
Being dust and waterproof protection rated to IP54, with built in impact resistance to 1m, this new adapter provides robust reliability for a long working life, making this the ideal choice for your electric vehicle charging needs.
