| Weight | 2.6 kg |
|---|---|
| Rate Power | 16A 1P3.6KW, 32A 1P 7.2KW 5m |
| Color | White Plug and Black Wire |
| Plug Type | J1772 TO IEC 62196-2 |
| Charging Type | Model 3 |
| Charging plug | J1772 TO IEC 62196-2 |
| Rated Current | 32A 1P |
| Capacity | 7.2KW |
| Cable length | 5 meters |
| Warranty | 12 Months |
| Working Temper+21:26ature | –30℃ ~ 55℃ |
| Protection Degree | IP55 |
| Mating andUN-mating Force | 45<F<80N |
| Mechanical Life(Normal use) | >10000 times |

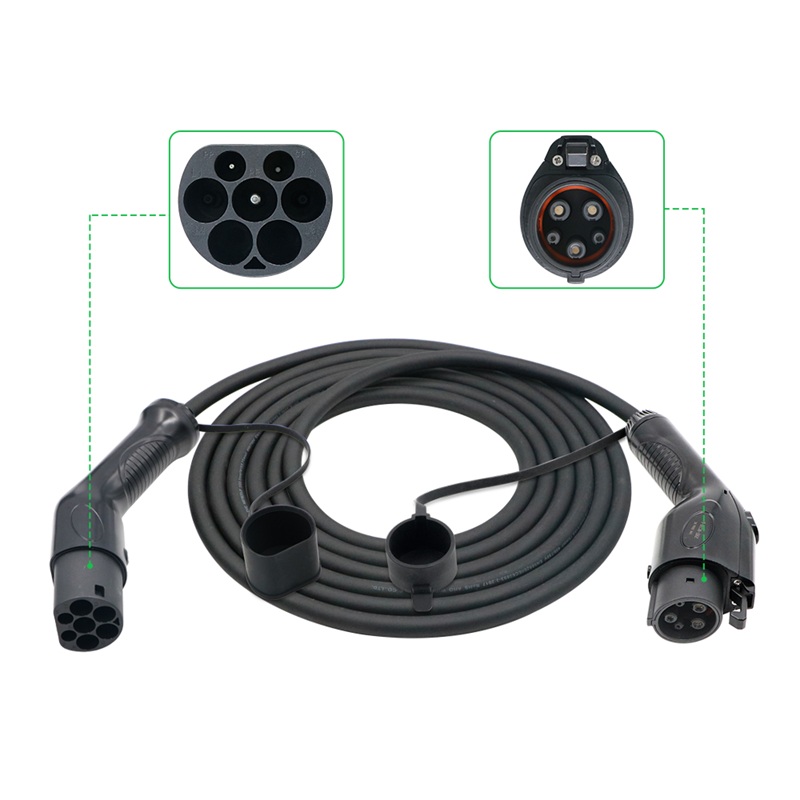

ISIGMA EV CHARGER CABLE is designed for charging in mode 3, echarging from all private and public AC stations. Both connectors have an ergonomic shape and the mounting part is made of soft plastic, which ensures easy and comfortable handling and connection. When the cable is connected, it is protected against the ingress of particles and water. Protective caps have a degree of protection IP54 and allow protection against ingress of dust.
Advantage
TPU CABLE
Stronger and anti-aging
Meet the newest EN standard
More environmentally friendly, halogen-free
More resistant to cold and keep flexible at -40℃
More resistant to bending and longer service life
EV PLUG
Unique integrated design, stronger
Temperature monitoring on plugs (patented)
Better conductivity and higher energy transmission
efficiency
